SMLW01 Low Weight Loss Magnets

Product ID:	SMLW01
Material:	NdFeB
Shape:	Brick
Dimension:	Customized
Grade:	Custom
Coating:	Nickel Coated Magnets
Max Operating Temp(°C/°F):	80/176

Low Weight Loss Magnets has better corrosion resistance than normal magnets. Generally speaking, the weight loss data of normal NdFeB magnets is150mg/cm2 and we can reach to 5 mg/cm2 with Low Weight Loss Magnets and even 1 mg/cm2 in environment with high pressure & high humidity & high temperate (Testing condition: HAST standard for 168hr; 131℃; 3 atm; 100% RH). The less weight loss means better corrosion resistance, which reflects the performance of magnet.

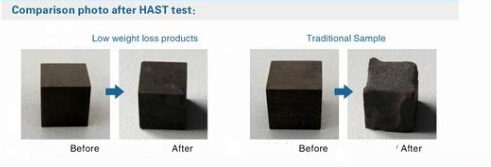

The data is based on HAST Standard Testing Condition:
Atmosphere: 3 Atm
Humidity: 100% RH
Temperature: 131 ℃
Lasting Hour: 168hr
Loss Weight: 5mg/cm2

Application of Neodymium Low Weight Loss Magnets:
-Healthcare;
-MRI and NMR
-TWT (Transverse Wave Tube)
-Lifting Apparatus
-Separators
-Automobile Motors
