SM-FT Magnetic Filters (Magnetic Liquid Traps)

Product ID:	SM-FT
Material:	Customized
Shape:	Customized
Dimension:	Customized
Tolerances:	Customized
Grade:	Customized
Coating:	Ceramic/Ferrite
Max Operating Temp(°C/°F):	Customized

Magnetic Filters (Magnetic Liquid Traps)

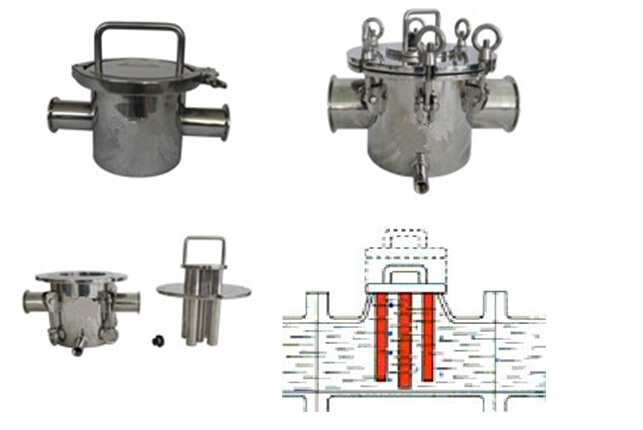

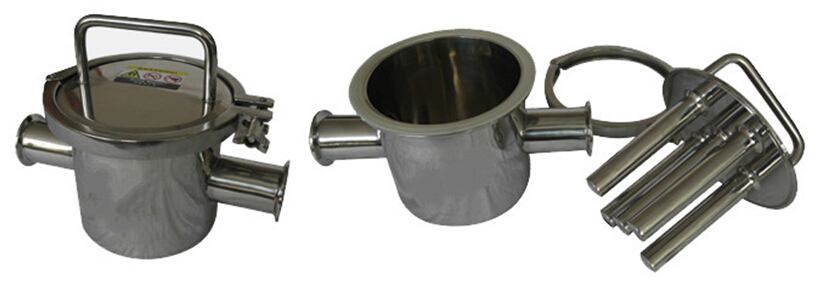

Magnetic liquid trap is a magnetic separator designed to separate the ferrous contaminants in liquid, semi-liquid materials and air conveying powder in order to purify these materials in the production process. Strong bar separators inside the liquid trap housing filtrates the flow and picks out the unwanted ferrous metal.

Quick release clamp inlet/outlet

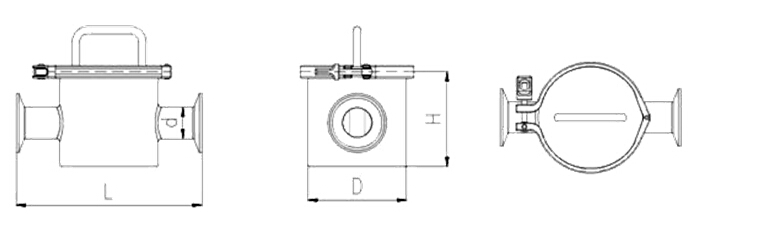

Part#	Dimensions (mm)				No. of Magnetic bars
	D	d	H	L
SM-FT100/25CC	100	25.4	150	220	3
SM-FT100/38CC	100	38.1	150	220	3
SM-FT100/50CC	100	50.8	150	220	3
SM-FT100/76CC	100	76.2	150	220	3
SM-FT114/25CC	114	25.4	150	250	5
SM-FT114/38CC	114	38.1	150	250	5
SM-FT114/50CC	114	50.8	150	250	5
SM-FT114/76CC	114	76.2	150	250	5
SM-FT150/25CC	159	25.4	150	300	5
SM-FT150/38CC	159	38.1	150	300	5
SM-FT150/50CC	159	50.8	150	300	5
SM-FT150/76CC	159	76.2	150	300	5
SM-FT150/100CC	159	101.6	150	300	5
SM-FT200/25CC	219	25.4	200	360	7
SM-FT200/38CC	219	38.1	200	360	7
SM-FT200/50CC	219	50.8	200	360	7
SM-FT200/76CC	219	76.2	200	360	7
SM-FT200/100CC	219	101.6	200	360	7
SM-FT150/25CF	159	32	150	300	5
SM-FT150/32CF	159	38	150	300	5
SM-FT150/40CF	159	45	150	300	5
SM-FT150/50CF	159	57	150	300	5
SM-FT150/65CF	159	76	150	300	5
SM-FT200/50CF	219	57	200	350	7
SM-FT200/65CF	219	76	200	350	7
SM-FT200/80CF	219	89	200	350	7
SM-FT200/100CF	219	108	200	350	7

*Remark:

"FT" stands for ferrous traps
"CC" stands for quick release clamp style, inlet and outlet are quick release clamps
"CF" stands for quick release clamp style, inlet and outlet are round flanges

**Please give us the info below if you’d like to have a customized product:

1. Interface/connection type and diameter
2. Pipeline pressure
3. Operating temperature
4. Installation space
5. Magnetic field strength
6. Characteristics & name of material; PH; Particle size; fluidity; etc

Other special designs
