SM-MPS Magnetic Pulley Separator
Product ID: | SM-MPS |
---|---|
Material: | Customized |
Shape: | Customized |
Dimension: | Customized |
Tolerances: | Customized | Grade: | Customized |
Coating: | Ceramic/Ferrite |
Max Operating Temp(°C/°F): | Customized |

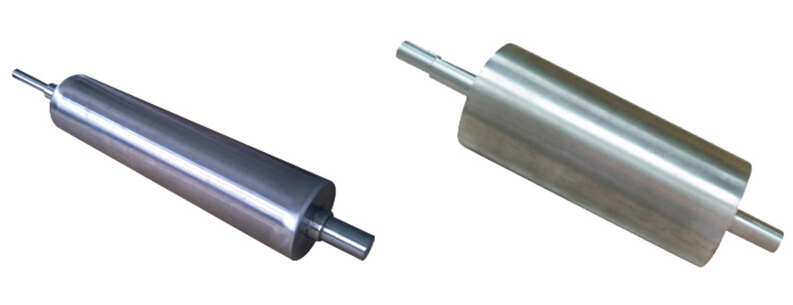

Magnetic Pulley Separator
The operating principle of magnetic pulley separator is similar to that of a drum magnet, which is also designed for continuous self-cleaning of product flows. Magnetic pulley is generally installed at the end of conveyor belt to separate the iron contaminant from material.

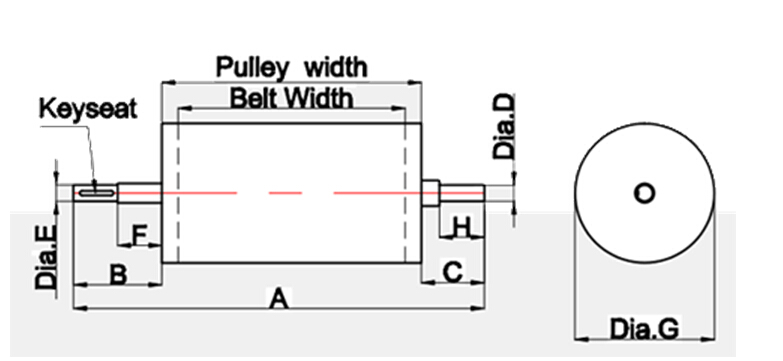

Part# |
Dimensions (mm) |
||||
dia. G |
Pulley Width |
dia. E |
dia. D |
||
200 |
SM-MPS 2140 |
215 (8.5'') |
400 |
30 |
40 |
SM-MPS 2150 |
215 (8.5'') |
500 |
30 |
40 |
|
SM-MPS 2160 |
215 (8.5'') |
600 |
30 |
40 |
|
SM-MPS 2170 |
215 (8.5'') |
700 |
30 |
40 |
|
SM-MPS 2180 |
215 (8.5'') |
800 |
30 |
40 |
|
SM-MPS 2190 |
215 (8.5'') |
900 |
30 |
40 |
|
SM-MPS 21100 |
215 (8.5'') |
1000 |
30 |
40 |
|
300 |
SM-MPS 3140 |
315 (12.5'') |
400 |
40 |
50 |
SM-MPS 3150 |
315 (12.5'') |
500 |
40 |
50 |
|
SM-MPS 3160 |
315 (12.5'') |
600 |
40 |
50 |
|
SM-MPS 3170 |
315 (12.5'') |
700 |
40 |
50 |
|
SM-MPS 3180 |
315 (12.5'') |
800 |
40 |
50 |
|
SM-MPS 3190 |
315 (12.5'') |
900 |
40 |
50 |
|
SM-MPS 31100 |
315 (12.5'') |
1000 |
40 |
50 |
|
400 |
SM-MPS 4040 |
400 (15.75'') |
400 |
50 |
60 |
SM-MPS 4050 |
400 (15.75'') |
500 |
50 |
60 |
|
SM-MPS 4060 |
400 (15.75'') |
600 |
50 |
60 |
|
SM-MPS 4070 |
400 (15.75'') |
700 |
50 |
60 |
|
SM-MPS 4080 |
400 (15.75'') |
800 |
50 |
60 |
|
SM-MPS 4090 |
400 (15.75'') |
900 |
50 |
60 |
|
SM-MPS 40100 |
400 (15.75'') |
1000 |
50 |
60 |
Specification PDF:
