SM-MDS Magnetic Drum Separators

Product ID:	SM-MDS
Material:	Customized
Shape:	Customized
Dimension:	Customized
Tolerances:	Customized
Grade:	Customized
Coating:	Ceramic/Ferrite
Max Operating Temp(°C/°F):	Customized

Magnetic Drum Separators
Magnetic Drum Separators are designed for continuous self-cleaning of metal contaminants from product flow streams. The materials usually have the characters of dry, bulk and have a high concentration of iron contaminants contained. The main benefit of drum magnet is working without line stopping.

Construction:

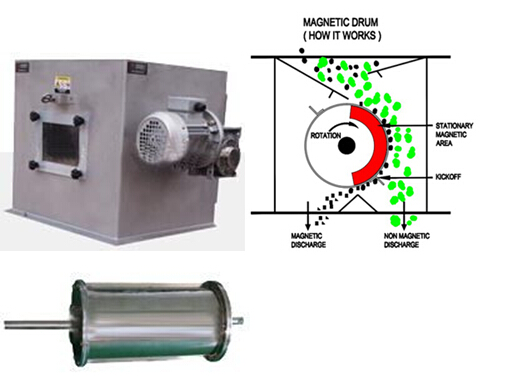

Stanford Magnetic Drum Separator is a drum magnet with a housing outside for mounting purpose. It has all the benefit of drum magnet but easier to installation. Drum Magnet has a magnetic part of 180 degree arc internal which is stationary. The other half space is totally non-magnetized. When material drops onto the drum cover surface, the metal contaminants will be attracted on the magnetic part while materials pass through. As drum cover is rotating invariable, the iron contaminant will follow its orbit to non-magnetized part and consequent it discharged down.

Features:
1. Finishing: Mirror polished allover where material will contact while outside house Brushing or Sand blasted
2. Material of shell: 100% SS304 outside.
3. Magnet: Either rare earth magnet or Ferrite magnet
4. Magnetic strength: multiform magnetic strength standard
5. Applicable Material: Bulk process like Mineral, Wood chip, Recyclables etc.
6 Customer designs, specifications can be fulfilled.
Magnetic Drum Separator

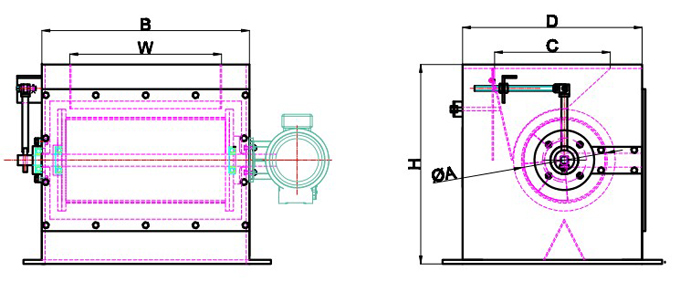

	Part#	Dimensions (mm)
		dia. A	Width B	Depth D	Inlet Length W	Inlet Length C	Height H
200 Series	SM-MDS 2140	215 (8.5'')	500	400	350	260	475
	SM-MDS 2150	215 (8.5'')	600	400	450	260	475
	SM-MDS 2160	215 (8.5'')	700	400	550	260	475
	SM-MDS 2170	215 (8.5'')	800	400	650	260	475
	SM-MDS 2180	215 (8.5'')	900	400	750	260	475
	SM-MDS 2190	215 (8.5'')	1000	400	850	260	475
	SM-MDS 21100	215 (8.5'')	1100	400	950	260	475
300 Series	SM-MDS 3140	315 (12.5'')	500	500	350	330	650
	SM-MDS 3150	315 (12.5'')	600	500	450	330	650
	SM-MDS 3160	315 (12.5'')	700	500	550	330	650
	SM-MDS 3170	315 (12.5'')	800	500	650	330	650
	SM-MDS 3180	315 (12.5'')	900	500	750	330	650
	SM-MDS 3190	315 (12.5'')	1000	500	850	330	650
	SM-MDS 31100	315 (12.5'')	1100	500	950	330	650
400 Series	SM-MDS 4040	400 (15.75'')	500	585	350	405	750
	SM-MDS 4050	400 (15.75'')	600	585	450	405	750
	SM-MDS 4060	400 (15.75'')	700	585	550	405	750
	SM-MDS 4070	400 (15.75'')	800	585	650	405	750
	SM-MDS 4080	400 (15.75'')	900	585	750	405	750

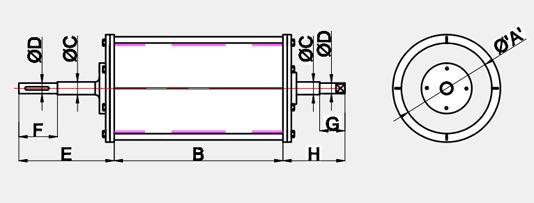

Drum Magnet only

	Part#	Dimensions (mm)
		dia. A	Width B	dia. C
200 Series	SM-MDS 2140	215 (8.5'')	400	30
	SM-MDS 2150	215 (8.5'')	500	30
	SM-MDS 2160	215 (8.5'')	600	30
	SM-MDS 2170	215 (8.5'')	700	30
	SM-MDS 2180	215 (8.5'')	800	30
	SM-MDS 2190	215 (8.5'')	900	30
	SM-MDS 21100	215 (8.5'')	1000	30
300 Series	SM-MDS 3140	315 (12.5'')	400	40
	SM-MDS 3150	315 (12.5'')	500	40
	SM-MDS 3160	315 (12.5'')	600	40
	SM-MDS 3170	315 (12.5'')	700	40
	SM-MDS 3180	315 (12.5'')	800	40
	SM-MDS 3190	315 (12.5'')	900	40
	SM-MDS 31100	315 (12.5'')	1000	40
400 Series	SM-MDS 4040	400 (15.75'')	400	50
	SM-MDS 4050	400 (15.75'')	500	50
	SM-MDS 4060	400 (15.75'')	600	50
	SM-MDS 4070	400 (15.75'')	700	50
	SM-MDS 4080	400 (15.75'')	800	50
	SM-MDS 4090	400 (15.75'')	900	50
	SM-MDS 40100	400 (15.75'')	1000	50

*Please give us the info below if you’d like to have a custom work:

1. Interface/connection type and diameter
2. Pipeline pressure
3. Operating temperature
4. Installation space
5. Magnetic field strength
6. characteristic & name of material; PH; Particle size; fluidity; etc

Other special designs
