SM-MRG Rotary Magnetic Separators
Product ID: | SM-MRG |
---|---|
Material: | Customized |
Shape: | Customized |
Dimension: | Customized |
Tolerances: | Customized | Grade: | Customized |
Coating: | Ceramic/Ferrite |
Max Operating Temp(°C/°F): | Customized |

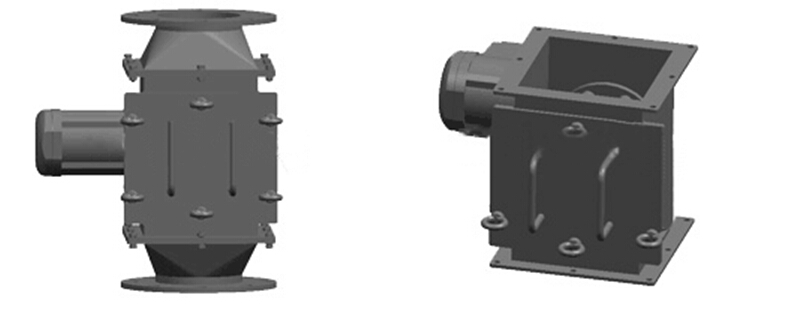

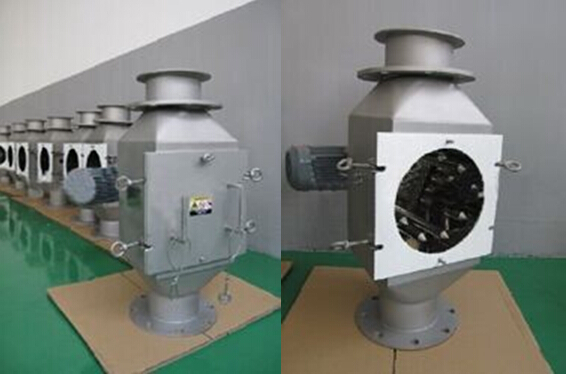

Rotary Magnetic Separators
Rotary magnetic separators are used to remove the ferrous contaminants from the material that is apt to caking and bridging. These materials, like power with high moisture which is somewhat viscous, are easy to cake using fixed magnetic separators. However, with rotary magnetic separators, the rotary action will scatter the material and make more contaminants attracted on the rods.
Typical Products
Part# |

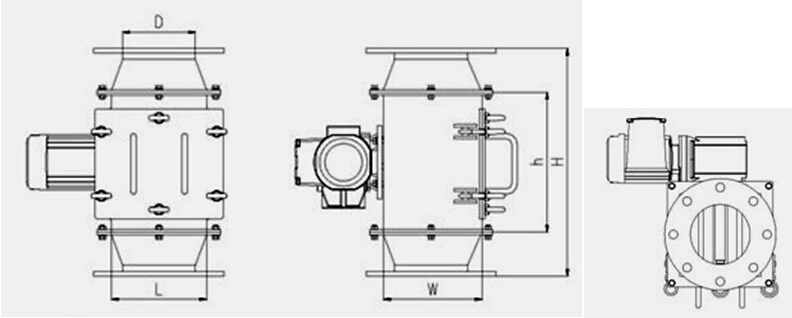

Dimensions (mm) |
Capacity |
No. of Magnetic bars |
||||
D |
W |
L |
h |
H |
|||
SM-MRG150 |
150 |
205 |
208 |
300 |
480 |
0.25 |
7 |
SM-MRG200 |
200 |
255 |
258 |
350 |
530 |
0.25 |
9 |
SM-MRG250 |
250 |
305 |
308 |
400 |
580 |
0.25 |
11 |
SM-MRG300 |
300 |
244 |
358 |
450 |
630 |
0.37 |
13 |
SM-MRG350 |
350 |
405 |
408 |
500 |
680 |
0.37 |
15 |
SM-MRG2020 |
205 |
208 |
300 |
0.25 |
7 |
||
SM-MRG2525 |
255 |
258 |
350 |
0.25 |
9 |
||
SM-MRG3030 |
305 |
308 |
400 |
0.25 |
11 |
||
SM-MRG3535 |
355 |
358 |
450 |
0.37 |
13 |
||
SM-MRG4040 |
405 |
408 |
500 |
0.37 |
15 |
*Please give us the info below if you’d like to have acustomized product:
- Interface/connection type and diameter
- Pipeline pressure
- Operating temperature
- Installation space
- Magnetic field strength
- Characteristics & name of material; PH; Particle size; fluidity; etc
- Other special designs
